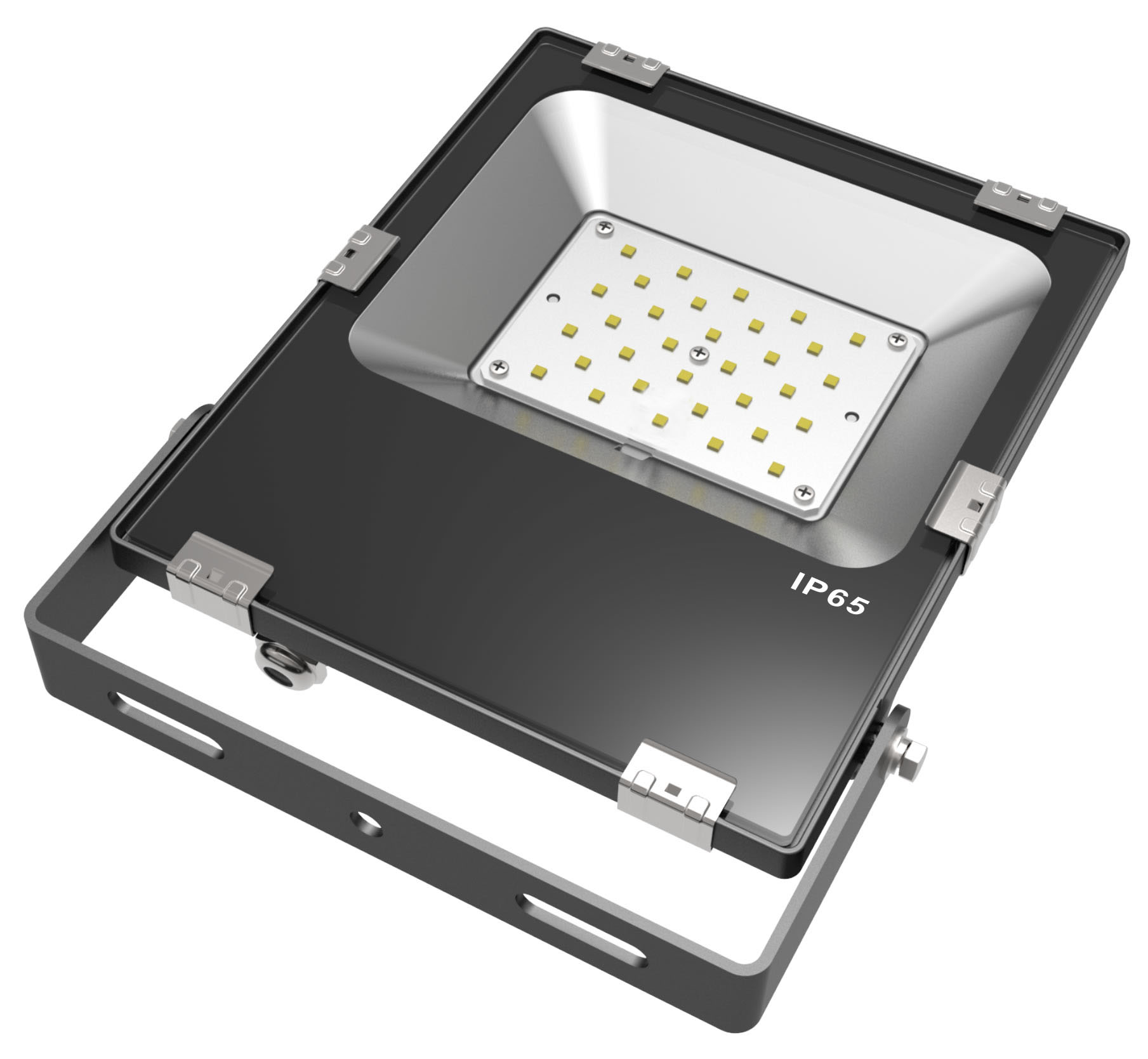

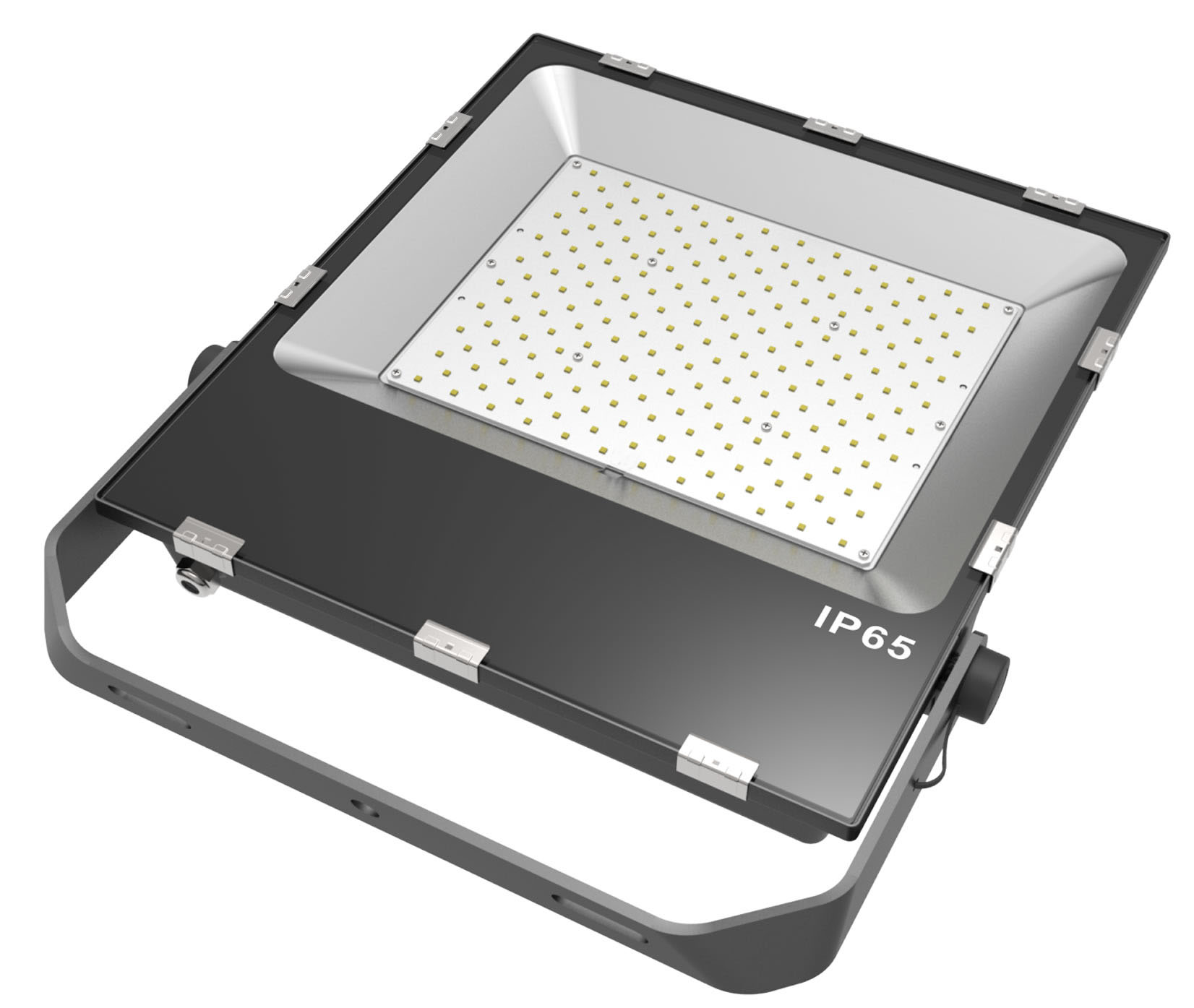

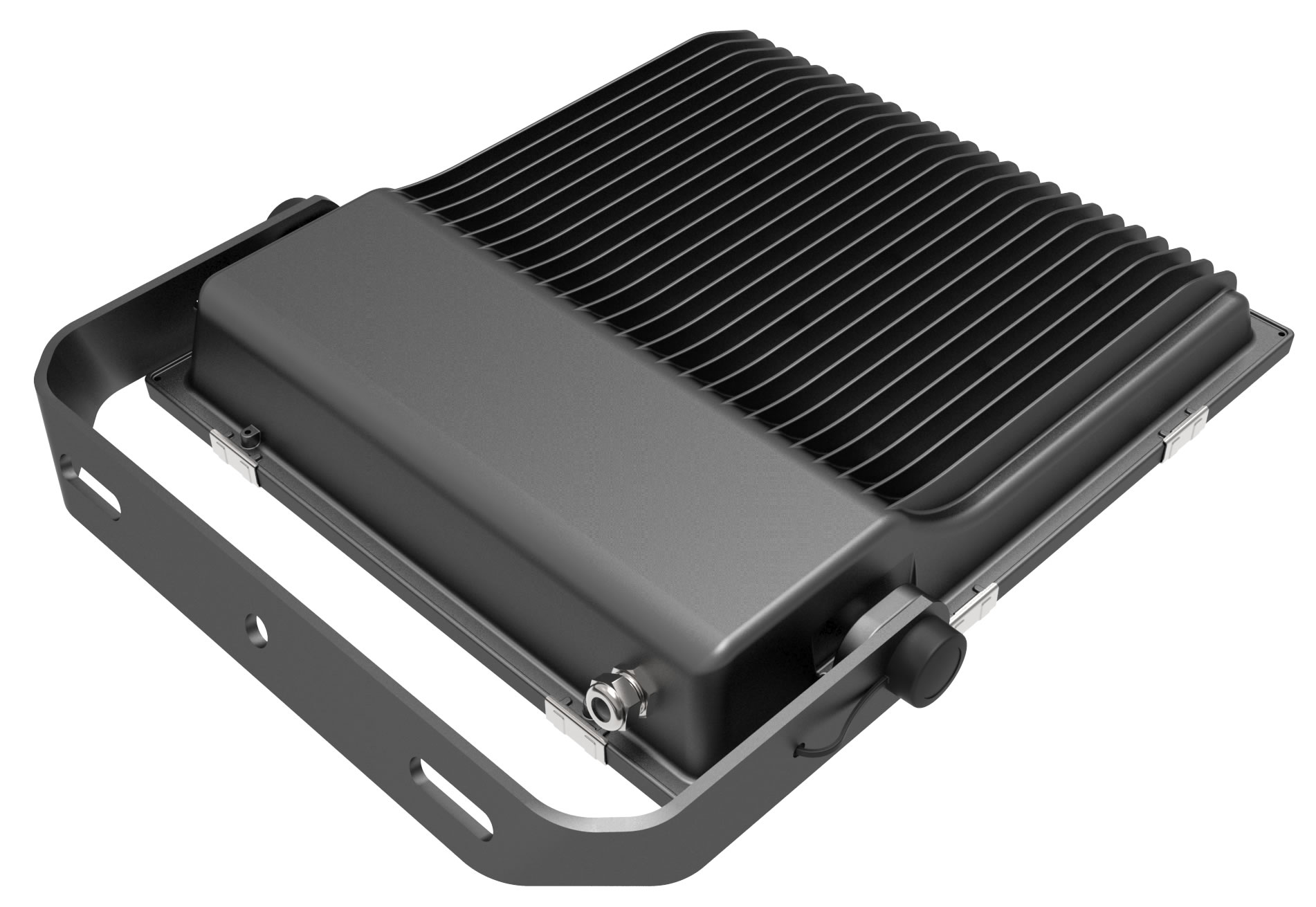

LED Floodlight

support hotline:18922812045Consult now

Information details

Product Detail:












Specification data

Specification data of Slim LED Flood Lights
Description
1Product Name10W LED Flood light20W LED Flood light30W LED Flood light
2ModelSJ-SMDFL-10WSJ-SMDFL-20WSJ-SMDFL-30W
3Input voltageAC100-240V AC100-240V AC100-240V
4Driver BrandDoneDoneDone
4Input frequency50~60HZ50~60HZ50~60HZ
5Power factor>0.9>0.9>0.9
6Light source10pcs Lumileds SMD303020pcs Lumileds SMD303030pcs Lumileds SMD3030
7Consumed power10W 20W 30W
8Light efficacy120lm/w120lm/w120lm/w
9Luminous flux3600lm±512000lm±53600lm±5
10CRI>80Ra>80Ra>80Ra
11Color temperature3000-6500K3000-6500K3000-6500K
12IP GradeIP65IP65IP65
13Shell ColorBlack / WhiteBlack / WhiteBlack / White
14MaterialAluminum+Tempered GlassAluminum+Tempered GlassAluminum+Tempered Glass
15Beam angle120 degree120 degree120 degree
16Product Size140*107*32MM190*162*40MM200*167*40 mm
17Net weight0.5 kg0.8 kg1.1 kg
18Working temp-40~+90-40~+90℃-40~+90℃
19Lifespan50,000Hrs50,000Hrs50,000Hrs
20Warranty5 Years5 Years5 Years
