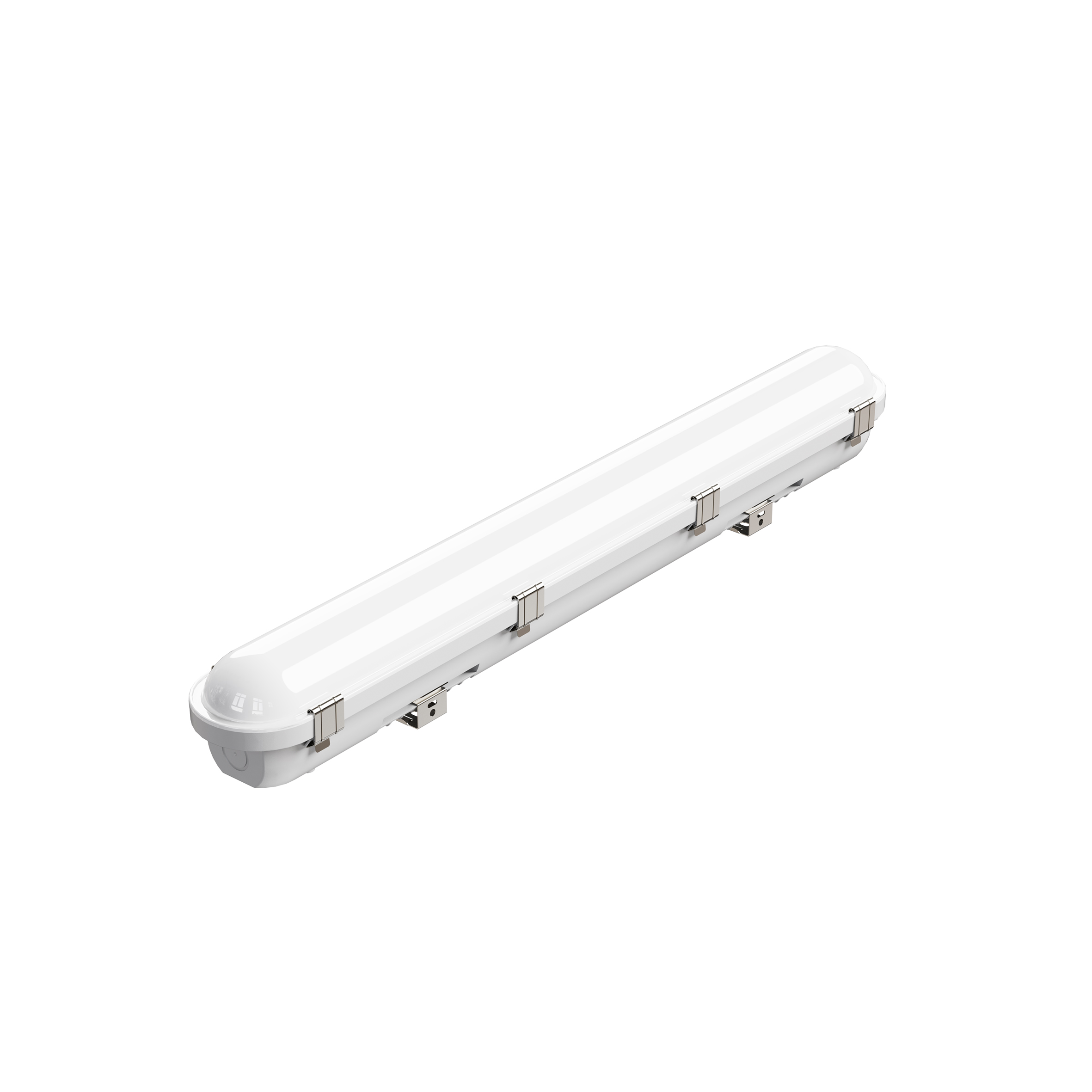

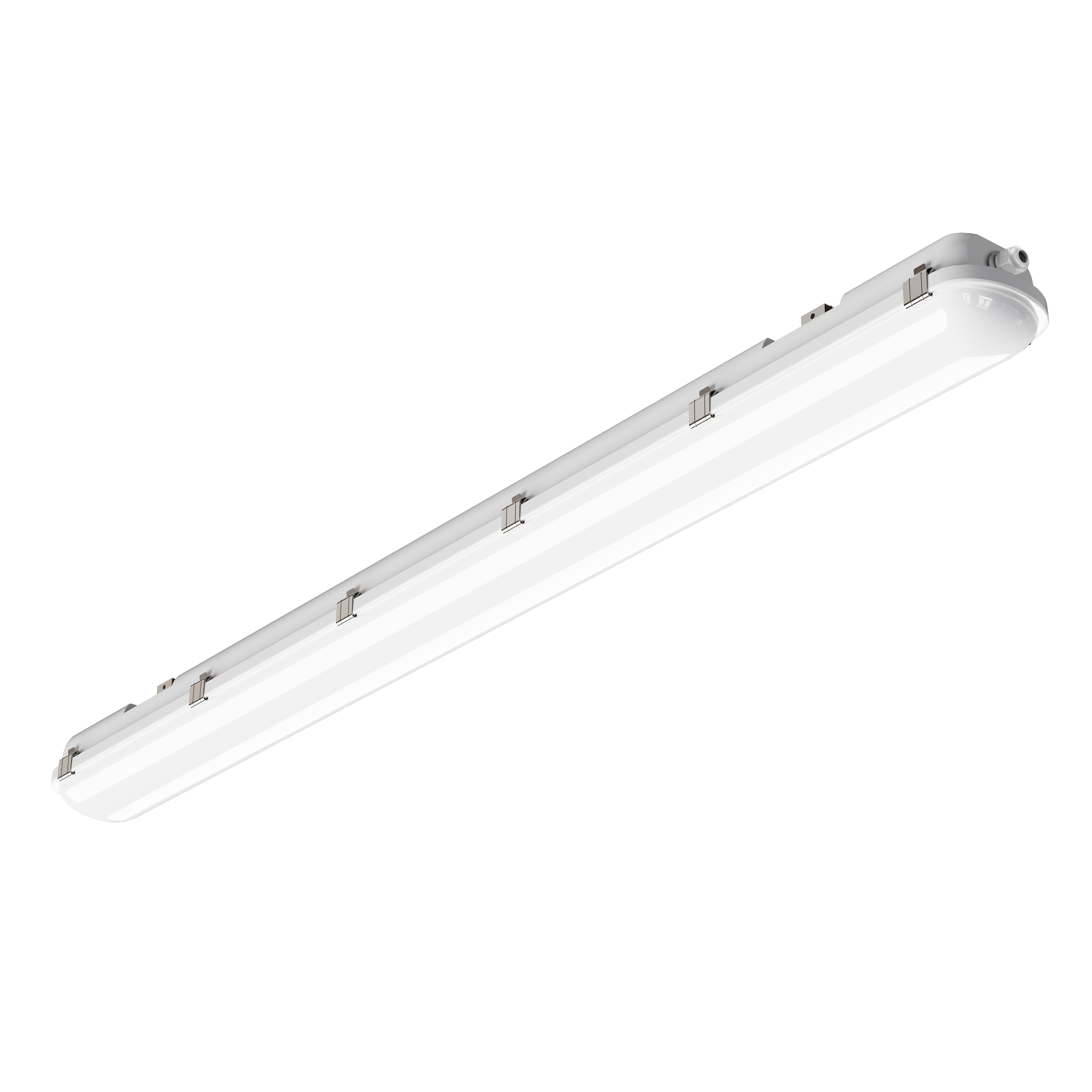

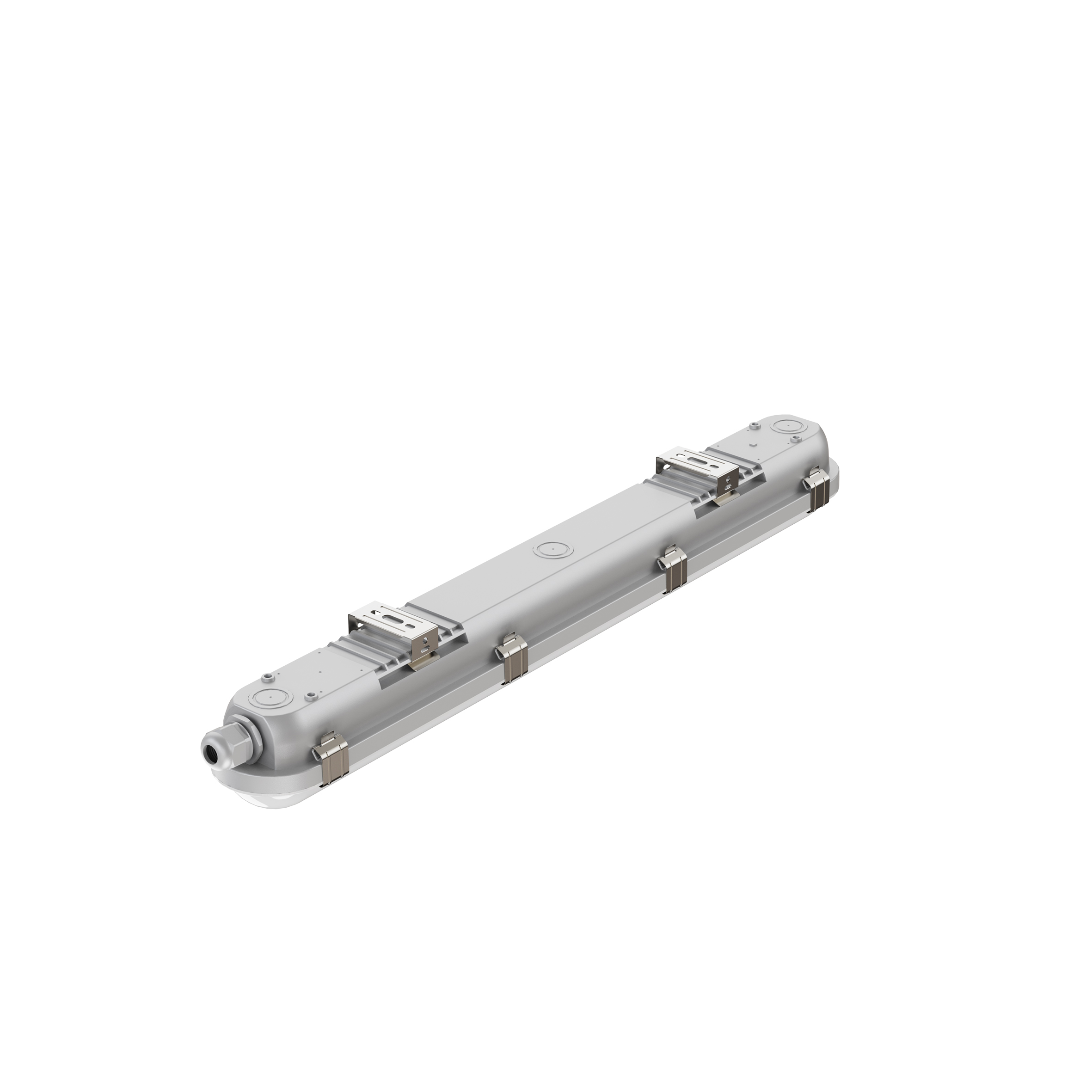

LED Traditional TRI-PROOF Light

support hotline:18922812045Consult now

Information details

Product Detail:

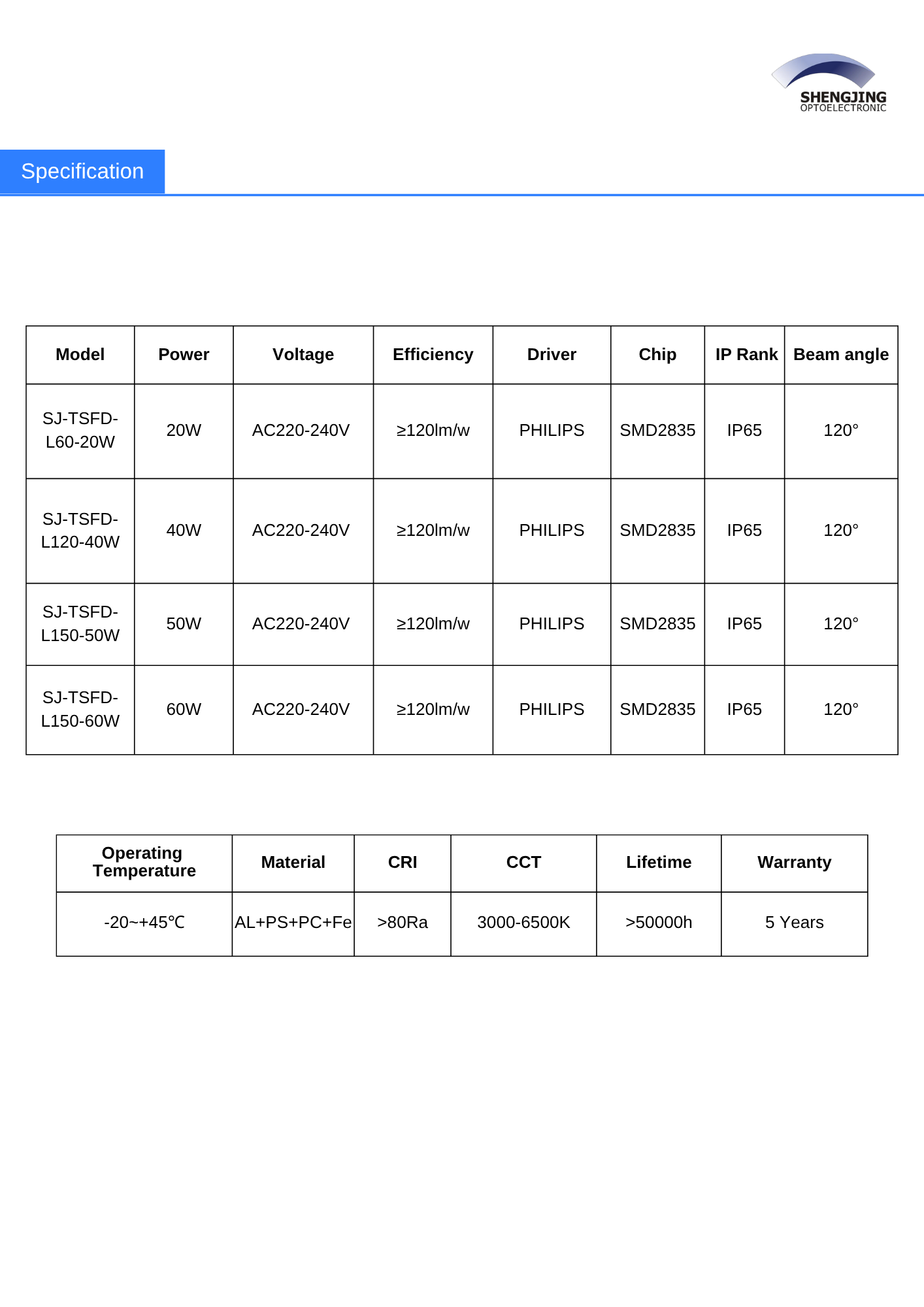

Specification data

1Product Name20W TRI-PROOF light40W TRI-PROOF light50W TRI-PROOF light60W TRI-PROOF light
2Model:SJ-TSFD-L60-20WSJ-TSFD-L120-40WSJ-TSFD-L150-50WSJ-TSFD-L150-60W
3Input voltageAC220-240V AC220-240V AC220-240V AC220-240V
4Input frequency:50~60HZ50~60HZ50~60HZ50~60HZ
5Featureflicker freeflicker freeflicker freeflicker free
6Power factor:>0.9>0.9>0.9>0.9
7Driver BrandPHILIPSPHILIPSPHILIPSPHILIPS
8Light source: 120pcs SMD2835 144 pcs SMD2835 216 pcs SMD2835 216 pcs SMD2835
9Consumed power:20W 40W 50W 60W
10Light efficacy:120lm/w120lm/w120lm/w120lm/w
11Luminous flux:2400lm±54800lm±56000lm±57200lm±5
12CRI:>80Ra>80Ra>80Ra>80Ra
13Color temperature:3000-6500K3000-6500K3000-6500K3000-6500K
14IP GradeIP65IP65IP65IP65
15Material:AL+PS+PC+FeAL+PS+PC+FeAL+PS+PC+FeAL+PS+PC+Fe
16Beam angle:120 degree120 degree120 degree120 degree
17Product Size:600*83*72mm1200*83*72mm1500*83*72mm1500*83*72mm
18Inner Box Size:630*90*80mm1230*90*80mm1530*90*80mm1530*90*80mm
19Outer Box Size:650*290*430mm1250*290*260mm1550*290*260mm1550*290*260mm
20Qty / CTN15pcs9pcs9pcs9pcs
21N.W / pcs1 kg1.8 kg2.1 kg2.1 kg
22G W / CTN19kg18 kg21 kg21 kg
23Working temp:-20~+45-20~+45-20~+45-20~+45
24Lifespan:50,000Hrs50,000Hrs50,000Hrs50,000Hrs
25Warranty:5 Years from shipping date5  Years from shipping date5 Years from shipping date5 Years from shipping date
